MicroVolume Syringes- 0.µ5L-5µL

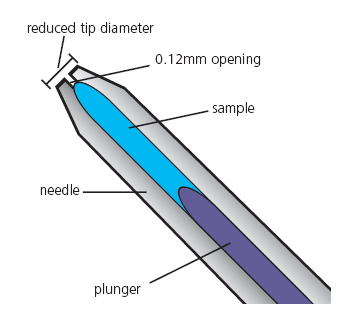

Plunger-in-needle 5µL syringe with nozzle tip (Part No. 000805)

• nozzle tip with a 0.12mm opening and cone shape for better septum penetration.
• full sample displacement
• plunger extended to the tip of the needle – ZERO DEAD VOLUME
• no sample carryover
• improved sample volume reproducibility

Plunger-in-needle- 6.5mm OD Barrel

Volume	Needle Length (mm)	Gauge	OD (mm)	Tip Style	Part No.
0.5µL	50	23	0.63	Come	SG000300
0.5µL	50	23	0.63	Bevel	SG000301
0.5µL	50	26	0.47	Cone	SG000303

Plunger-in-needle- 8mm OD Barrel

Volume	Needle Length (mm)	Gauge	OD (mm)	Tip Style	Part No.
0.5µL	70	23	0.63	Cone	SG000310
0.5µL	70	23	0.63	Bevel	SG000311
1µL	50	23	0.63	Cone	SG000500
1µL	50	23	0.63	Bevel	SG000501
1µL	70	23	0.63	Cone	SG000505
1µL	70	23	0.63	Bevel	SG000506
1µL	115	23	0.63	Cone	SG000510
1µL	70	26	0.47	Cone	SG000570
5µL	50	23	0.63	Cone	SG000800
5µL	50	23	0.63	Bevel	SG000801
5µL	70	23	0.63	Cone	SG000802
5µL	70	23	0.63	Bevel	SG000803
5µL	115	23	0.63	Cone	SG000804
5µL	70	23	0.63	Nozzle	SG000805

Plunger-in-needle- 6.5mm OD Barrel with repeating Adaptor

Volume	Needle Length (mm)	Gauge	OD (mm)	Tip Style	Part No.
0.5µL	50	23	0.63	Cone	SG000355
0.5µL	50	26	0.47	Cone	SG000353

Plunger-in-needle- 8mm OD Barrel with Repeating Adaptor

Volume	Needle Length (mm)	Gauge	OD (mm)	Tip Style	Part No.
0.5µL	70	23	0.63	Cone	SG000355
1µL	70	23	0.63	Cone	SG000550
1µL	70	23	0.63	Cone	SG000553
5µL	50	23	0.63	Cone	SG000850
5µL	50	23	0.63	Cone	SG000852

Repeating Adaptor

• for reproducible dispensed volumes, use a syringe repeating adaptor, NO MORE guess work lining up the plunger. For ordering information, see Syringe accessories
