Special Syringes
Gas Sealing Gland Syringes
Fixed Needle
Volume |
Needle Length (mm) |
Gauge |
OD (mm) |
Tip Style |
Part No. |
25µL |
50 |
25 |
0.5 |
Bevel |
SG003600 |
50µL |
50 |
25 |
0.5 |
Bevel |
SG004600 |
100µL |
50 |
25 |
0.5 |
Bevel |
SG005600 |
250µL |
50 |
25 |
0.5 |
Bevel |
SG006600 |
500µL |
50 |
25 |
0.5 |
Bevel |
SG007600 |
Removable Needle
Volume |
Needle Length (mm) |
Gauge |
OD (mm) |
Tip Style |
Part No. |
25µL |
50 |
25 |
0.5 |
Bevel |
SG003610 |
50µL |
50 |
25 |
0.5 |
Bevel |
SG004610 |
100µL |
50 |
25 |
0.5 |
Bevel |
SG005610 |
250µL |
50 |
25 |
0.5 |
Bevel |
SG006610 |
500µL |
50 |
25 |
0.5 |
Bevel |
SG007610 |
100µL Gas Sealing Gland Syringe, removable needle, bevel tip,
Part No. SG005610
High Pressure Syringes
Volume |
Needle Length (mm) |
Gauge |
OD (mm) |
Tip Style |
Part No. |
1mL |
70 |
23 |
0.63 |
Bevel |
SG008170 |
1mL |
70 |
19 |
1.07 |
Side Hole |
SG008171 |

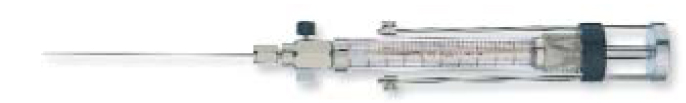

1mL High Pressure Syringe, designed for high pressure gas sampling (rated to 500psi / 1700kPa)
Part No. SG008170
Jumbo Syringes
Volume |
Description |
Part No. |
500mL |
Jumbo Syringe |
SG009910 |
Replacement Plunger O-Ring |
SG032527 |
|
1L |
||
Jumbo Syringe |
SG009920 |
|
Replacement Plunger O-Ring |
SG032532 |
|
2L |
||
Jumbo Syringe |
SG009930 |
|
Replacement Plunger O-Ring |
SG032537 |

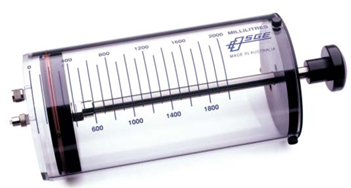

Jumbo Syringes
• designed for holding and dispensing large gas volumes
• easy access to barrel for addition of standards or removal of sample via secondary port
Headspace/Soil Gas Syringes
Volume |
Description |
Pack Size |
Part No. |
5mL Gas Tight |
Headspace Syringe |
1 |
SG008775 |
10mL Gas Tight |
Headspace Syringe |
1 |
SG008975 |
Replacement Probe |
1 |
SG031571 |
|
Replacement Needles |
5 |
SG039802 |

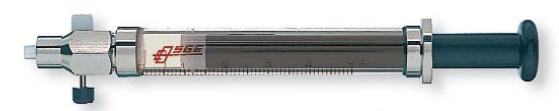

5mL Headspace Syringe with valve (syringe supplied with probe and needle)
Part No. SG008775
Headspace replacement Luer probe with a |
Headspace replacement Luer needle, |
On-Column Syringes
Volume |
Needle Length (mm) |
OD (mm) |
Needle Material |
Part No. |
0.5µL |
100 |
0.23 |
Sheathed Stainless Steel |
SG000372 |
70 |
0.47 |
Stainless Steel |
SG000376 |
|
75 |
0.23 |
Stainless Steel |
SG000380 |
|
5µL |
100 |
0.17 |
Fused Silica |
SG001552 |
100 |
0.17 |
Sheather Fused Silica |
SG001554 |
|
10µL |
100 |
0.17 |
Fused Silica |
SG002520 |
5µL On-Column Syringe, sheathed fused silica needle,
Part No. SG001554
