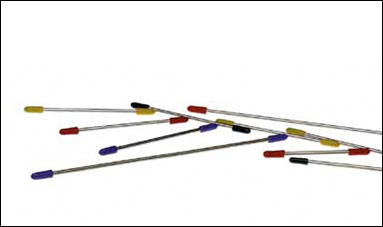

Pre-Cut Stainless Steel Tubing
Pre-cut
stainless steel tubing in lengths most commonly required in HPLC systems.
Each tube is ready to use.
Use 0.25mm (0.010") ID tubing from the same injection valve to
the column and from the column to the detector- keep them as short as
possible.
We recommend 0.50mm (0.020") or 0.75mm (0.030") ID tubing
for the transfer of the mobile phase from the pump to the injection
valve.
Use smaller ID when working with a gradient system.
Length |
OD
(Inches) |
ID |
Colur |
Part
No |
40mm |
1/16" |
0.13mm |
Red |
J97000 |
50mm |
1/16" |
0.13mm |
Red |
J97005 |
100mm |
1/16" |
0.13mm |
Red |
J97010 |
200mm |
1/16" |
0.13mm |
Red |
J97015 |
300mm |
1/16" |
0.13mm |
Red |
J97020 |
50mm |
1/16" |
0.18mm |
Yellow |
J97025 |
100mm |
1/16" |
0.18mm |
Yellow |
J97030 |
200mm |
1/16" |
0.18mm |
Yellow |
J97035 |
300mm |
1/16" |
0.18mm |
Yellow |
J97040 |
50mm |
1/16" |
0.25mm |
Blue |
J97045 |
100mm |
1/16" |
0.25mm |
Blue |
J97055 |
200mm |
1/16" |
0.25mm |
Blue |
J97060 |
300mm |
1/16" |
0.25mm |
Blue |
J97065 |
50mm |
1/16" |
0.50mm |
Orange |
J97075 |
100mm |
1/16" |
0.50mm |
Orange |
J97080 |
200mm |
1/16" |
0.50mm |
Orange |
J97085 |
300mm |
1/16" |
0.50mm |
Orange |
J97090 |
50mm |
1/16" |
0.75mm |
Green |
J97095 |
100mm |
1/16" |
0.75mm |
Green |
J97100 |
200mm |
1/16" |
0.75mm |
Green |
J97105 |
300mm |
1/16" |
0.75mm |
Green |
J97110 |
