LC Accessories

Other LC Accessories

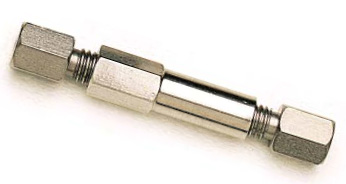

Director/Tubing Unions

• Detector/Tubing Unions are available for Waters®, Swagelok®, Parker™, Valco® and Rheodyne®

• A True Zero Dead Volume union enables connection of existing detector and other metal male fittings to the finger-tight compatible SGE column and guard cartridge system

• For conventional LC systems – NOT suitable for capillary LC

Description	Part No
Union for Waters® and Rheodyne tubing	SG2062746
Union for Swagelock®, Parker™ and Valco® tubing	SG2062747

Filters

Solvent Filter
• Filters solvent as drawn from the reservoir
• Efficiently filters particles down to 1.2µm with minimal pressure drop
• PTFE and porous glass filter membrane

Part No. SG204000

In-line Filter
• Prevents column blockage
• Utilizes a replaceable 0.5µm porosity frit assembly
• Supplied with Hexnut™ fittings

Part No. SG204002

Description	Part No
In-line Filter with a 1µm Frit (Supplied with holder)	SG204002
Replacement In-line Filter Frit Assembly	SG202009
Solvent Filter (1µm)	SG204000

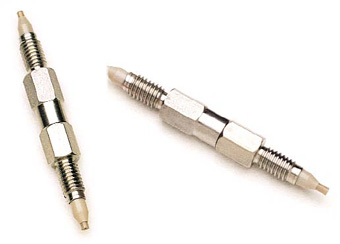

High Efficiency Column Couplers

• Inert – biocompatible
• Provide a rigid low dead volume, metal free connection between two components of an LC system
• Fused silica lined PEEK™ tubing (PEEKsil™)

Description	Pack Size	Part No
Srainless Steel Hexnut™ Coupler	1	SG200009
Replacement PEEKsil™ Tubing 1/6" x 175µm ID x 5mm	5	SG0624351

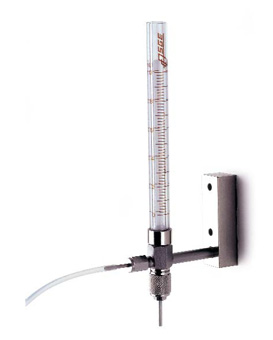

MicroFlow™ Meter

Description	Capacity	Part No.
MicroFlow Meter	50µL, 250µL & 1mL cells	SG206372
Replacement Flow Cell	50µL	SG206375
	250µL	SG206377
	1mL	SG206379
