Peristaltic Tubing Adapter Set



• - For connecting soft tubing to PTFE and PTFE-like tubing

• - Works with peristaltic tubing up to 4.50 mm OD

• - for 1/16" and 1/8" PTFE and PTFE-like tubing

• - Biocompatible

• - Low dead volume



This "one-fits-all" set consists of everything needed to connect 1/16" or 1/8 OD PTFE and PTFE-like tubing to soft tubing (such as silicone), up to 4.5 mm in OD.

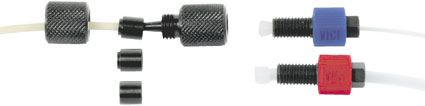

The adapter includes:

• 3 different bushings (for the different soft tubing ODs)

• 2 PPS nuts (one each for 1/16" and 1/8" OD tubing)

• 2 ETFE inverted ferrules (one each for 1/16" and 1/8" OD tubing)

• 2 Color-Sleeve adapters















Specifications

For 1/16" and 1/8" OD tubing, flangeless connections

Materials

Body - PEEK

Bushings - PEEK

Nuts - PPS

Ferrules - ETFE

1/4-28 threads

1.50 mm bore

Body size:

28 mm long

12 mm diameter
