Natural PEEK Hex Head One-Piece Fittings



• Fingertight up to 350 bar (5000 psi)

• For 1/16" OD tubing

• Excellent chemical and mechanical properties

• Pressure rating: <350 bar (5000 psi) (Varies with tubing material and ID)

• One-piece – no ferrule required

• Biocompatible

• For any 10-32 high pressure fitting



PEEK one-piece hex-head fittings are easy to use with the ValvTool or with the Color-It color-coded fingertight adapters. The 10-32 thread will fit virtually all standard high pressure female connections, and will withstand pressures of up to 350 bar (5000 psi). Available in short and long versions.

Sold in packages of 5



Description	Product No.
Short	JR-55100-5
Long	JR-55110-5



Natural PEEK HT One-Piece Hex-Head Fittings

•

• - Made of special PEEK HT for better pressure resistance

• - One-piece – no ferrule required

• - Biocompatible

• - Handy tightening tool included

• - For 1/16" and 1/32" tubing

• - Material: Special natural PEEK

• Threads:
  1/32": 6-40
  1/16": 10-32



These fittings are machined from special PEEK material to reach a higher pressure rating than standard PEEK fittings. A tightening tool is included.





Tubing OD	Thread	Quantity	Product No.
1/32"	6-40	10	JR-5525N-10
1/16"	10-32	10	JR-5520N-10

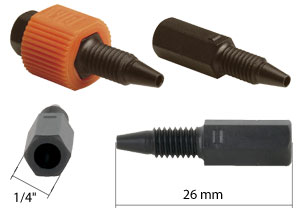

PPS one-piece hex-head fittings



•

• Economically-priced alternative to PEEK

• For 1/16" OD tubing

• 10-32 Threads

• Material: Black PPS (Polyphenylene sulfide)

• Tolerance: ±0.05 mm (.002")

• Pressure rating: <350 bar (5000 psi) (Varies with tubing material and ID)

• Excellent chemical and mechanical properties

• One-piece – no ferrule required

• Slim design – finger-tight with Color-Sleeve adapter

  The VICI Jour PPS one-piece hex-head (fingertight with adapter) fitting offers excellent chemical and pressure resistance.

•
  Sold in packages of 5





Product No.

JR-58000-5
