ZPure™ HC Filters







ZPure (TM) HC Filters

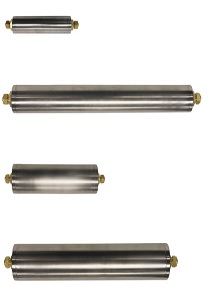

The ZPure HC will remove hydrocarbons heavier than butane from inert gases, He, Ar, N2, H2, and clean dry air (CDA) to low ppb levels. It is also recommended for most applications that require hydrocarbon-free gas, and is available in 4 sizes of stainless steel cylinders ranging from 130 cc to 750 cc. The ZPure HC Filter is available with standard compression fittings and quick connect fittings offered in 1/4” and 1/8” brass and stainless steel, or metal push-to-connect fittings in 1/4” and 6 mm for plastic tubing and non-carrier gas lines.









130cc

Capacity

HC* : 10 g

Efficiency

< 5 ppb

Nominal Flow Rate

1 SLPM

Max Recommended
Flow Rate

10 SLPM**

Hazardous
Shipping

NO





Max. Pressure
(PSI)

Approximate
Dimensions

Fitting Type

Part Number

1000

3.2 cm x 28 cm

1/8 in Brass Compression Fittings

202232-B

1/8 in Stainless Steel Compression Fittings

202232-SS

1/4 in Brass Compression Fittings

202233-B

1/4 in Stainless Steel Compression Fittings

202233-SS



200

3.2 cm x 34 cm
(28 cm w/o fittings)

1/8 in Brass Quick Connect Fittings

202232-B-QC

1/8 in Stainless Steel Quick Connect Fittings

202232-SS-QC

1/4 in Brass Quick Connect Fittings

202233-B-QC

1/4 in Stainless Steel Quick Connect Fittings

202233-SS-QC





100

3.2 cm x 25.5 cm

1/4 in Nickel Plated Brass Push-To-Connect Fittings

202232-4-PC

6 mm Nickel Plated Brass Push-To-Connect Fittings

202232-6-PC









LS - 475 cc

Capacity

HC* : 42 g

Efficiency

< 5 ppb

Nominal Flow Rate

3.7 SLPM

Max Recommended
Flow Rate

36 SLPM**

Hazardous
Shipping

NO





Max. Pressure
(PSI)

Approximate
Dimensions

Fitting Type

Part Number

1000

3.8 cm x 57 cm

1/8 in Brass Compression Fittings

202232L-B

1/8 in Stainless Steel Compression Fittings

202232L-SS

1/4 in Brass Compression Fittings

202233L-B

1/4 in Stainless Steel Compression Fittings

202233L-SS





200

3.8 cm x 63 cm
(57 cm w/o fittings)

1/8 in Brass Quick Connect Fittings

202232L-B-QC

1/8 in Stainless Steel Quick Connect Fittings

202232L-SS-QC

1/4 in Brass Quick Connect Fittings

202233L-B-QC

1/4 in Stainless Steel Quick Connect Fittings

202233L-SS-QC





100

3.8 cm x 54.5 cm

1/4 in Nickel Plated Brass Push-To-Connect Fittings

202232L-4-PC

6 mm Nickel Plated Brass Push-To-Connect Fittings

202232L-6-PC









DS - 500 cc

Capacity

HC* : 45 g

Efficiency

< 5 ppb

Nominal Flow Rate

3.8 SLPM

Max Recommended
Flow Rate

38 SLPM**

Hazardous
Shipping

NO







Max. Pressure
(PSI)

Approximate
Dimensions

Fitting Type

Part Number

200

5 cm x 35 cm

1/8 in Brass Compression Fittings

202232D-B

1/8 in Stainless Steel Compression Fittings

202232D-SS

1/4 in Brass Compression Fittings

202233D-B

1/4 in Stainless Steel Compression Fittings

202233D-SS



200

5 cm x 41 cm
(35 cm w/o fittings)

1/8 in Brass Quick Connect Fittings

202232D-B-QC

1/8 in Stainless Steel Quick Connect Fittings

202232D-SS-QC

1/4 in Brass Quick Connect Fittings

202233D-B-QC

1/4 in Stainless Steel Quick Connect Fittings

202233D-SS-QC



100

5 cm x 33 cm

1/4 in Nickel Plated Brass Push-To-Connect Fittings

202232D-4-PC

6 mm Nickel Plated Brass Push-To-Connect Fittings

202232D-6-PC







XLS - 750 cc

Capacity

HC* : 67 g

Efficiency

< 5 ppb

Nominal Flow Rate

5.8 SLPM

Max Recommended
Flow Rate

57 SLPM**

Hazardous
Shipping

NO







Max. Pressure
(PSI)

Approximate
Dimensions

Fitting Type

Part Number

200

5 cm x 50 cm

1/8 in Brass Compression Fittings

202232XL-B

1/8 in Stainless Steel Compression Fittings

202232XL-SS

1/4 in Brass Compression Fittings

202233XL-B

1/4 in Stainless Steel Compression Fittings

202233XL-SS



200

5 cm x 56 cm
(50 cm w/o fittings)

1/8 in Brass Quick Connect Fittings

202232XL-B-QC

1/8 in Stainless Steel Quick Connect Fittings

202232XL-SS-QC

1/4 in Brass Quick Connect Fittings

202233XL-B-QC

1/4 in Stainless Steel Quick Connect Fittings

202233XL-SS-QC





100

5 cm x 47.5 cm

1/4 in Nickel Plated Brass Push-To-Connect Fittings

202232XL-4-PC

6 mm Nickel Plated Brass Push-To-Connect Fittings

202232XL-6-PC









* Hydrocarbons heavier than C4
** For high flow applications, contact analytical@btconnect.com
