SGE Ferrules for Capillary Columns- Agilent Technologies
• 15% Graphite / 85% Vespel Ferrules
• 100% Graphite Ferrules
• SilTite™ Metal Ferrules
• Replacement SilTite™ Metal Ferrules
• Replacement SilTite™ Nuts
• Replacement SilTite™ Basic Seals
15% Graphite / 85% Vespel Ferrules
• robust and hard material
• forms strong grip with capillary column, cannot be reused
• low emissions – suitable for use with GC-MS interfaces
• must re-tighten connection after initial temperature cycles
• maximum temperature of 350°C
For injectors & Detectors at atmospheric pressure e.g. FID |
|||
Column ID |
Ferrule ID |
Pack Size |
Part No |
0.1- 0.25mm |
0.4mm |
10 |
SG073109 |
0.32mm |
0.5mm |
10 |
SG073111 |
0.53mm |
0.8mm |
10 |
SG073113 |
for 1/8" OD Packed Columns |
1/8" |
10 |
SG072669 |
for 1/4" OD Packed Columns |
1/4" |
10 |
SG072667 |
For GC-MS Interface Connection |
|||
Column ID |
Ferrule ID |
Pack Size |
Part No |
0.1-0.25mm |
0.4mm |
10 |
SG072663 |
0.32mm |
0.5mm |
10 |
SG072654 |
0.53mm |
0.8mm |
10 |
SG072655 |
100% Graphite Ferrules
• highest quality graphite material used
• lowest emission ferrules on the market
• excellent compressibility providing an excellent seal
• for high temperature seals (not recommended for GC-MS connections)
• temperature limit of 450°C
Injectors & Detectors at atmospheric pressure e.g. FID (Not for GC-MS) |
|||
Column ID |
Ferrule ID |
Pack Size |
Part No |
0.1- 0.32mm |
0.5mm |
10 |
SG072635 |
0.45- 0.53mm |
0.8mm |
10 |
SG072636 |
for 1/8" OD Packed Columns |
1/8" |
10 |
SG072602 |
for 1/4" OD Packed Columns |
1/4" |
10 |
SG072601 |
SilTite™ Metal Ferrules
(SilTite™ information)
For GC-MS Interface Connection (starter Kit) |
|||
Column ID |
Ferrule ID |
Pack Size |
Part No |
0.1- 0.25mm |
0.4mm |
10* |
SG073200 |
0.32mm |
0.5mm |
10* |
SG073201 |
0.53mm |
0.8mm |
10* |
SG073202 |
* Includes 10 ferrules, 2 SilTite™ nuts

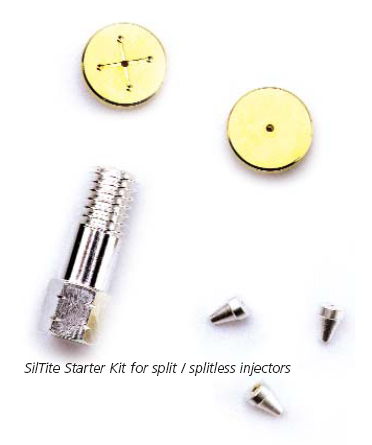

For Split / Splitless injectors (Starter Kit) |
|||
Column ID |
Ferrule ID |
Pack Size |
Part No |
0.1- 0.25mm |
0.4mm |
10# |
SG073270 |
0.32mm |
0.5mm |
10# |
SG073271 |
0.45- 0.53mm |
0.8mm |
10# |
SG073272 |
# Includes 10 ferrules, 2 SilTite™ nuts and 2 SilTite™ inlet Base Seals
Replacement SilTite™ Metal Ferrules
(SilTite™ information)
For all connections |
|||
Column ID |
Ferrule ID |
Pack Size |
Part No |
0.1- 0.25mm |
0.4mm |
10 |
SG073220 |
0.32mm |
0.5mm |
10 |
SG073221 |
0.53mm |
0.8mm |
10 |
SG073222 |
Replacement SilTite™ Nuts
(SilTite™ information)
SilTite™ nuts with the distinctive two notches, Part No. G073224 |
||
Pack Size |
Part No. |
|
For GC-MS Interface Connection |
5 |
SG073224 |
For Split / Splitless injectors |
5 |
SG073226 |
Replacement SilTite™ Basic Seals
(SilTite™ information)
For Split / Splitless injectors |
Pack Size |
Part No. |
2 |
SG073440 |
|
10 |
SG073401 |
Why Choose SilTite™ Ferrules?
• No more leaks
• No need to re-tighten nut after installation and thermal cycling
• Have the same thermal expansion coefficient as SilTite nuts thus giving a highly reliable seal
• Reusable nut
How to use SilTite™ ferrules?
• Only use the special SilTite nut with a SilTite ferrule
• For Agilent Technologies inlet connections, only use with SilTite inlet base seal and SilTite nut
